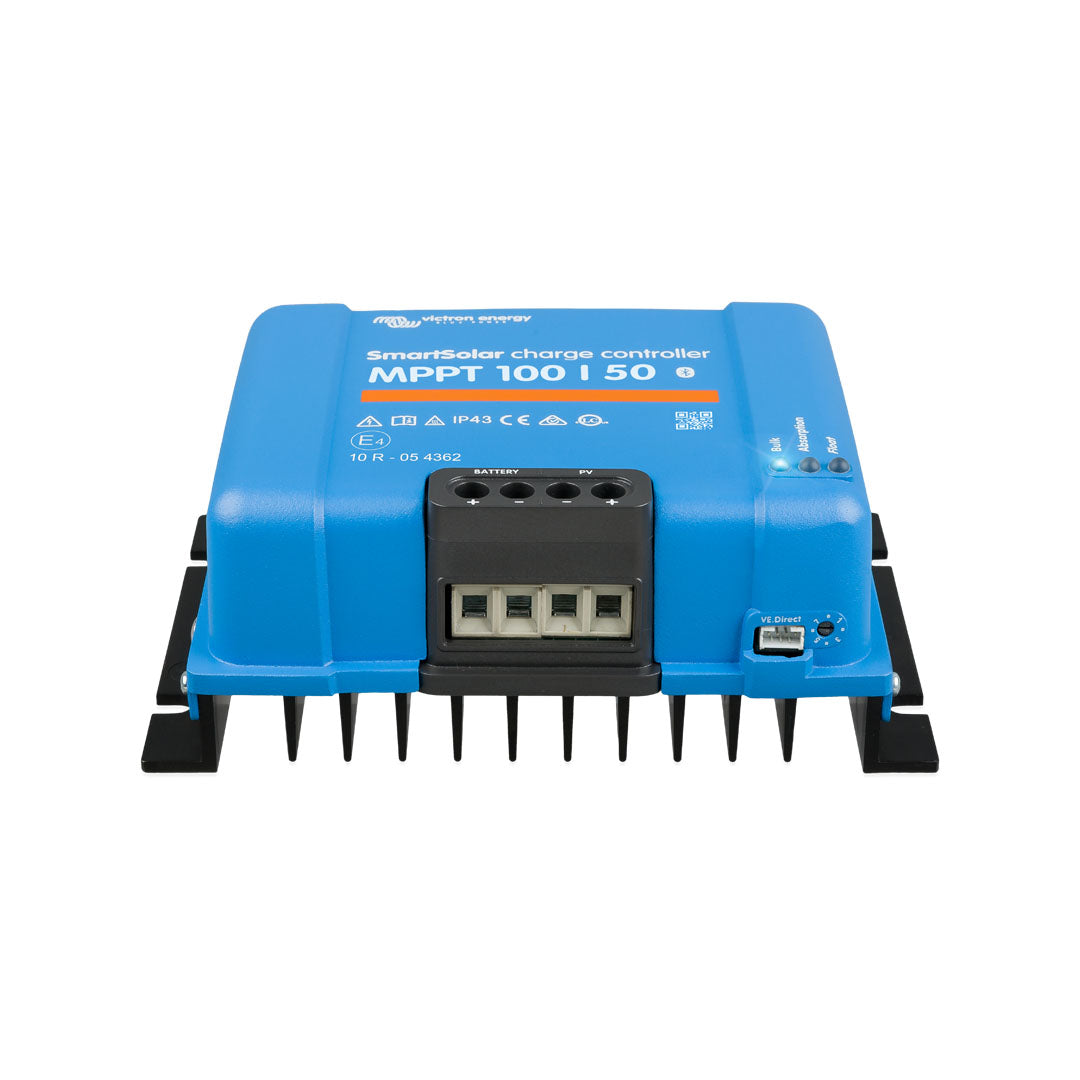

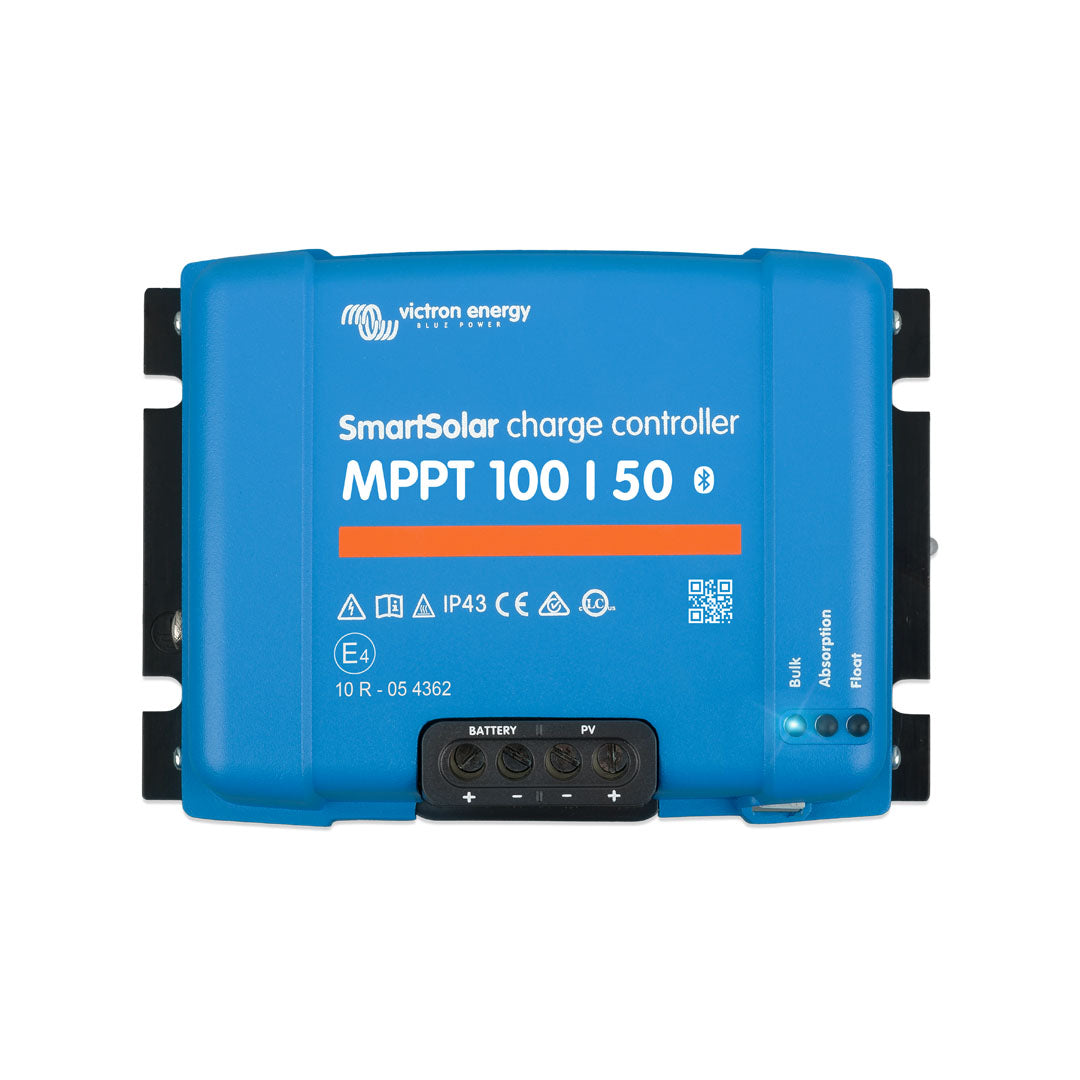

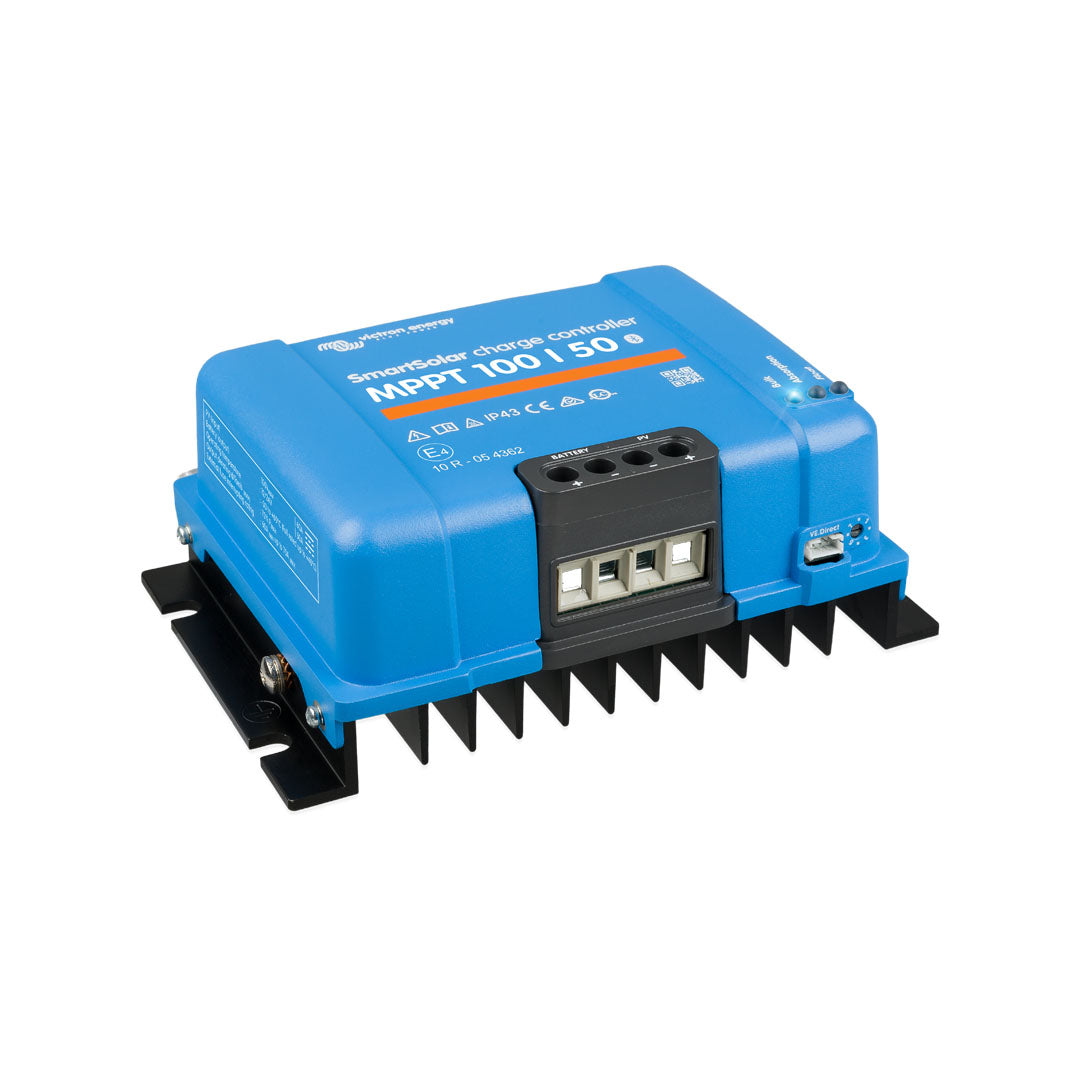

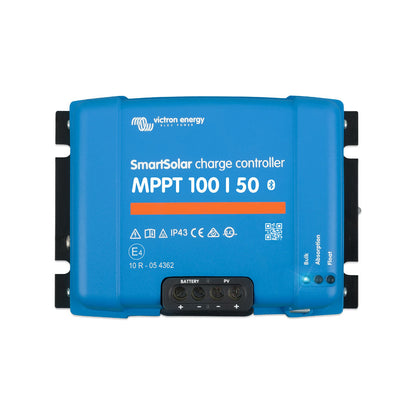

Victron SmartSolar MPPT 100/50 Bluetooth 12V/24V

📝 Victron SmartSolar MPPT 100/50

The Victron SmartSolar MPPT 100/50 is a high-performance solar charge controller built to maximise energy yield in off-grid, marine, RV, and remote solar installations. Using ultra-fast Maximum Power Point Tracking (MPPT) technology, it continuously optimises solar input, ensuring you capture every bit of available energy — even under cloud cover or partial shading. With built-in Bluetooth Smart, system monitoring and setup are simple using the VictronConnect app, giving you full control from your smartphone or tablet.

⭐ ESSENTIAL BENEFITS

• Ultra-fast MPPT algorithm – harvests up to 30% more power than PWM and 10% more than slower MPPT controllers, ensuring optimal charging efficiency.
• Superior shading performance – innovative BlueSolar algorithm finds the true maximum power point under partial shading, preventing energy loss.

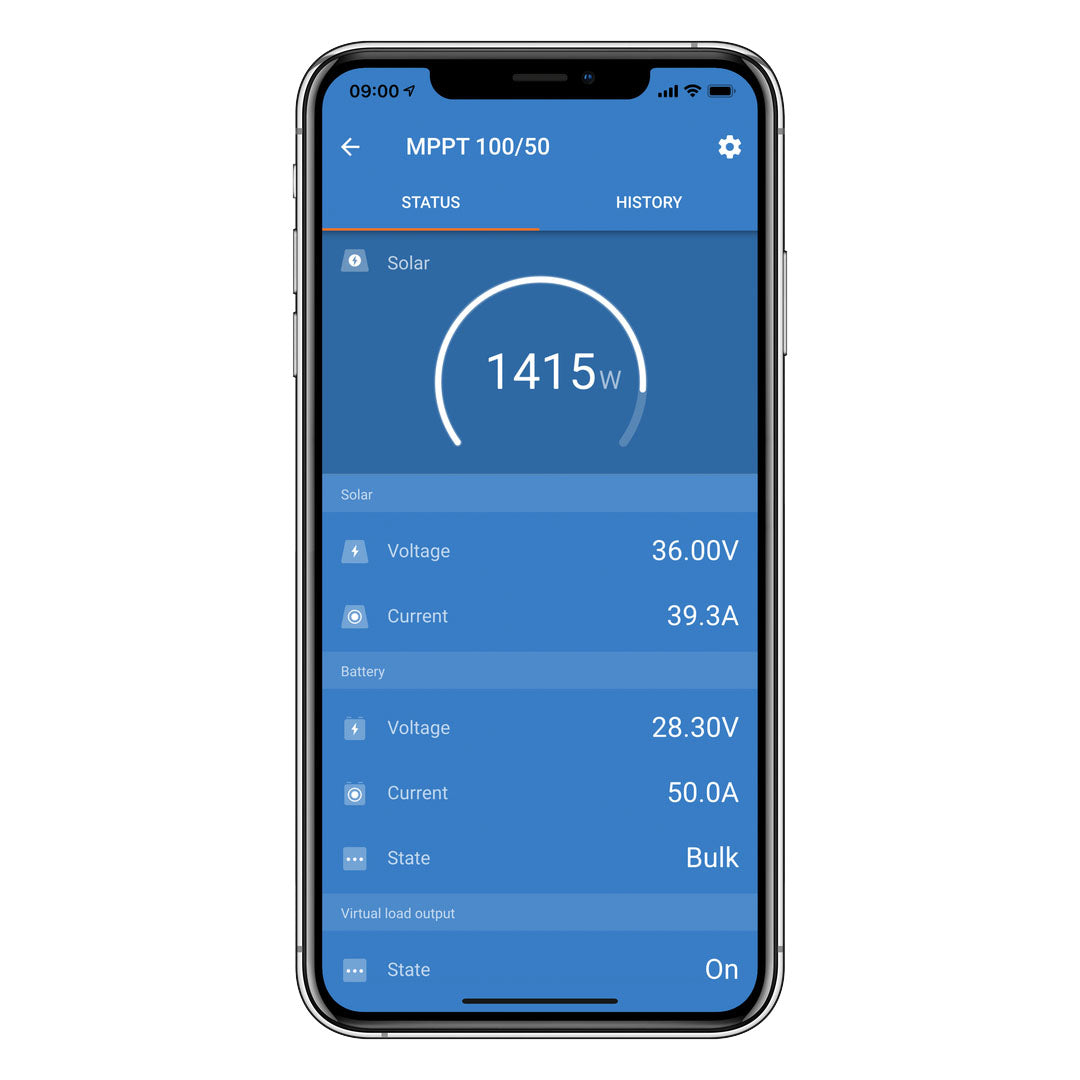

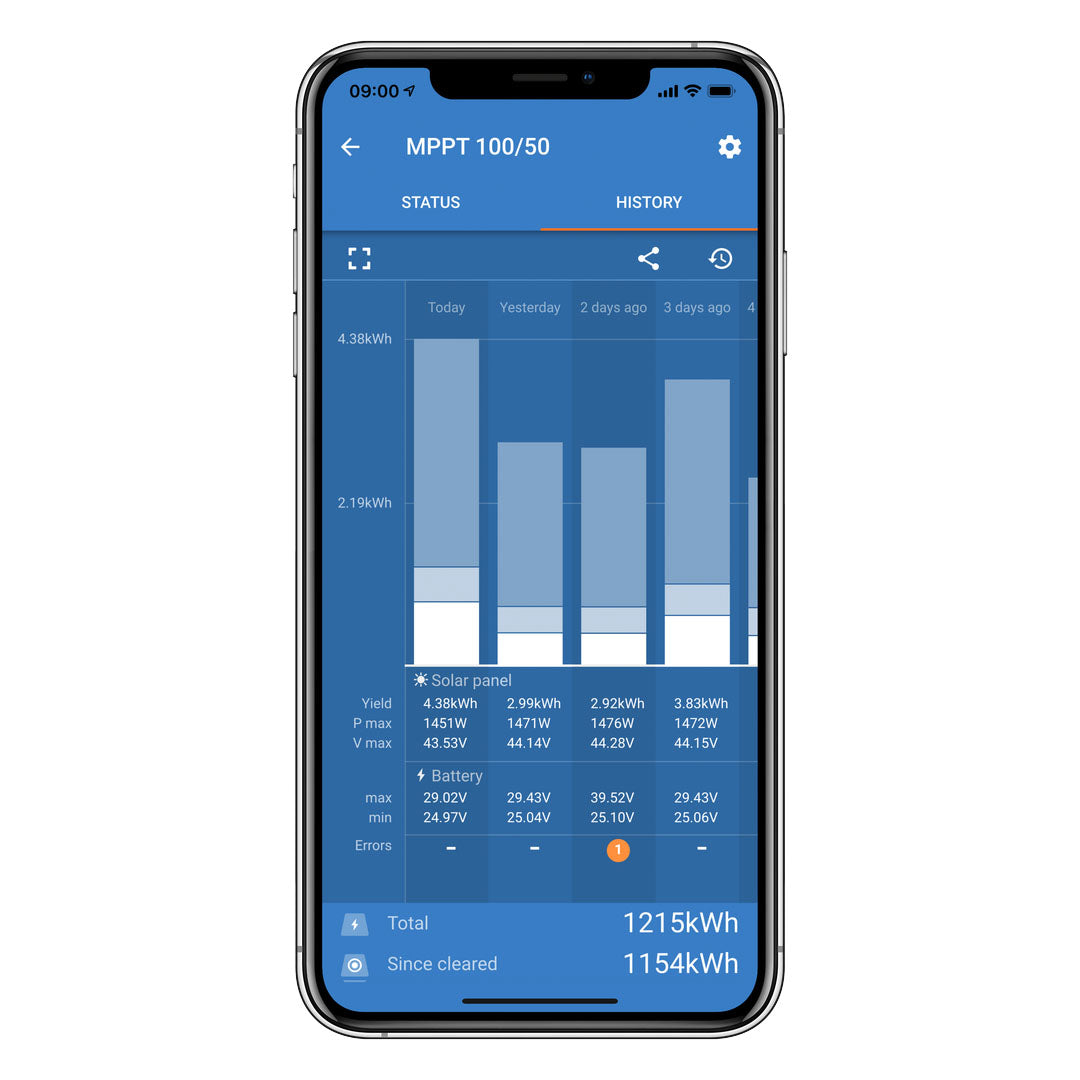

• Bluetooth Smart built-in – configure, monitor, and update wirelessly via the VictronConnect app.
• Remote monitoring via VRM – access and manage your solar system anywhere using the Victron Remote Management Portal (VRM).
• Outstanding efficiency – exceeds 98% conversion efficiency, with full output current sustained up to 40°C and no cooling fan required.
• Comprehensive protection – over-temperature protection, reverse polarity safeguards, and short-circuit protection for maximum reliability.
• Battery Life algorithm – intelligently regulates charge cycles to protect and extend battery lifespan.
• Flexible charging options – includes eight pre-set charge algorithms and supports custom configurations for any battery type.

⚙️ HOW IT WORKS / FUNCTIONALITY

The SmartSolar MPPT 100/50 continuously scans solar input voltage and current to locate the optimal power point, ensuring the highest charging efficiency. Its advanced shading detection automatically adapts to partial shade conditions, and the Battery Life algorithm prevents over-discharge while maintaining regular full charge cycles. Bluetooth Smart integration allows real-time system adjustments and updates, while VE.Direct enables wired connectivity to Victron GX devices for centralised control and monitoring.

🔌 COMPATIBILITY

• Supports 12V, 24V, 36V, and 48V battery systems (auto-select).
• Compatible with AGM, GEL, Lead-acid, and LiFePO4 batteries.
• Integrates with Victron GX devices, Smart Battery Sense, and BMV-712 Smart Battery Monitors.
• Ideal for RVs, caravans, marine systems, tiny homes, and off-grid solar setups.

🧰 INSTALLATION DIFFICULTY

🟡 Moderate (4/5) – suitable for users familiar with solar wiring and Victron systems. Professional installation is recommended for multi-array or high-voltage configurations.

🔍 FEATURES

• Bluetooth Smart built-in – monitor and configure with VictronConnect.

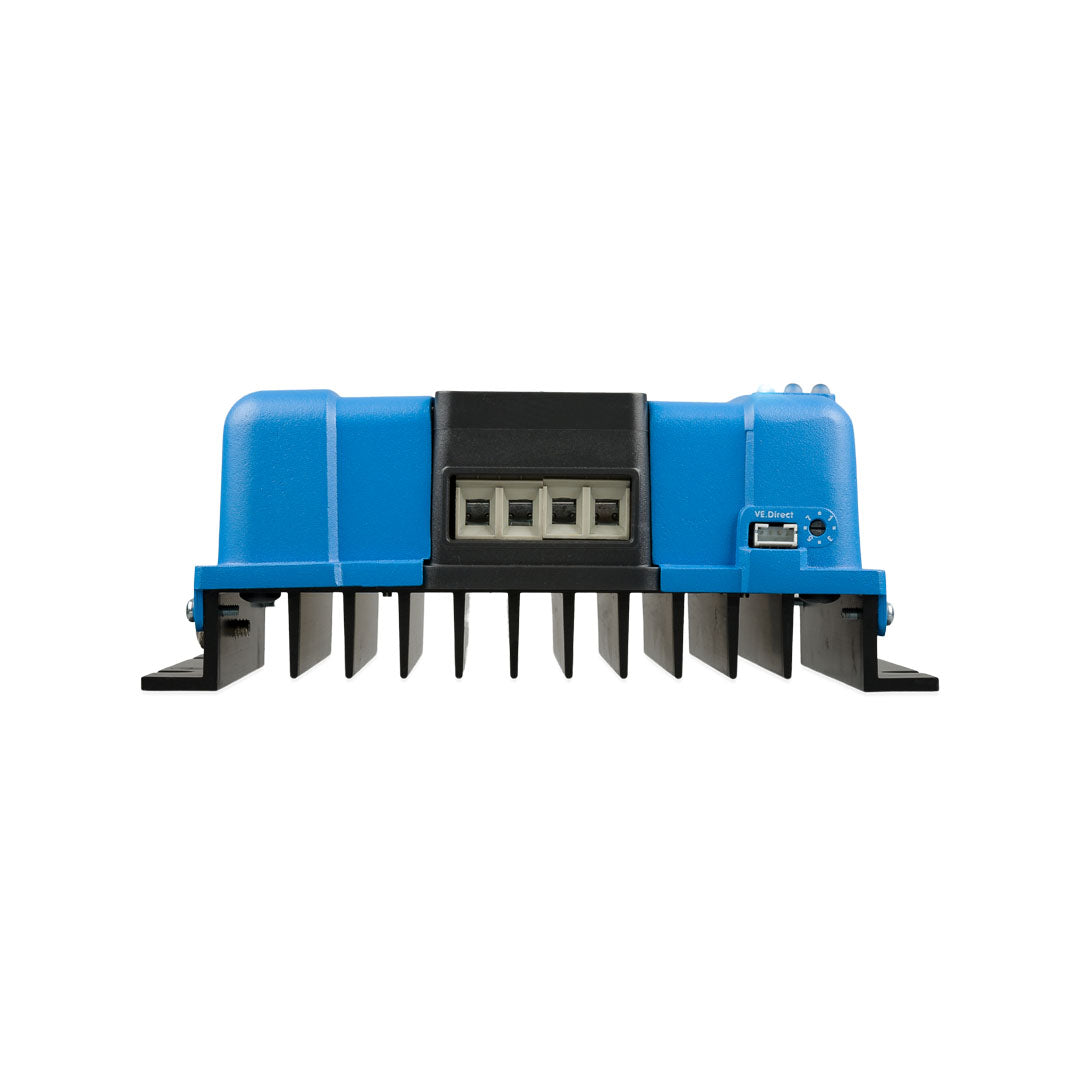

• VE.Direct communication port – supports wired integration with GX or PC devices.
• Advanced partial shading detection – ensures optimal performance in complex lighting.
• 98% peak efficiency – operates silently without cooling fans.
• Flexible charging – 8 pre-set and fully programmable charge algorithms.
• Internal temperature sensor – automatically compensates charge voltage for temperature.
• Optional external sensing – compatible with Smart Battery Sense or BMV-712 Smart for advanced voltage and temperature feedback.
• Fully discharged battery recovery – restarts charging from zero volts, including Li-ion systems with BMS disconnect.
• Comprehensive protection – safeguards against overheat, short circuit, and reverse polarity.

📊 SPECIFICATIONS TABLE

📦 WHAT’S INCLUDED

• 1 × Victron SmartSolar MPPT 100/50 Charge Controller
• Built-in Bluetooth Smart module
• User manual


Data sheet here

Manual here
