📝 Wireless Relay Remote Control Switch – DC 6–36v / AC 12–24v (10A)

This wireless relay remote control switch provides reliable RF-based on/off control for lights, motors, and automation circuits. Designed to operate on a wide input range of DC 6–36v or AC 12–24v, it supports flexible use across automotive, industrial, security, and general control applications.

Using wireless RF technology, the receiver can be triggered remotely without line-of-sight, allowing control through walls, doors, and other obstacles.

⭐ Essential Benefits

• Wide voltage input – supports DC 6–36v or AC 12–24v operation.
• Wireless RF control – remote signal passes through walls and solid objects.

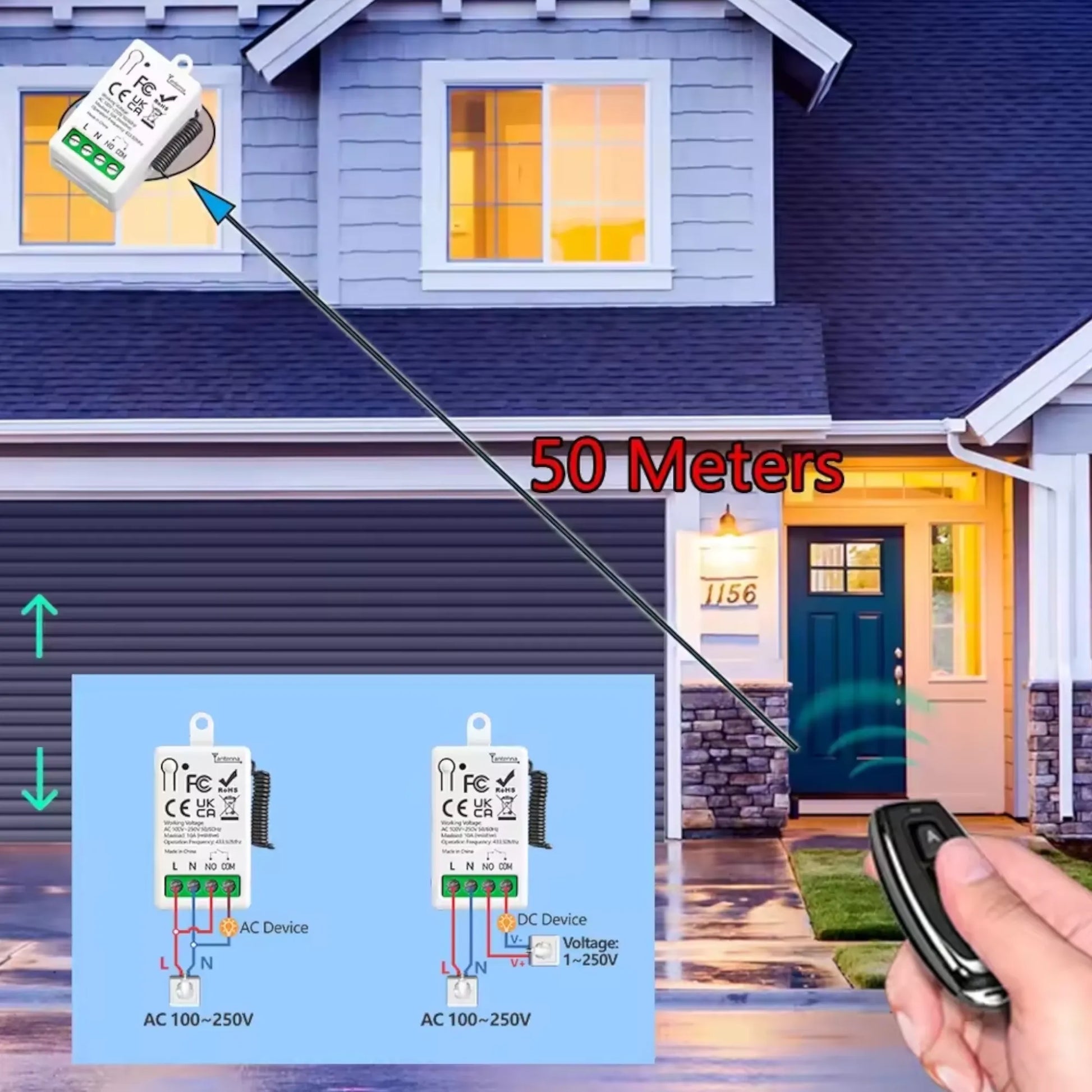

• Up to 50m control range – reliable distance in open, unobstructed areas.
• Multiple operating modes – momentary, toggle, and latching control options.
• Learning function – pairs easily with compatible remotes.
• Compact relay module – ideal for control boxes and concealed installs.
• 10A switching capacity – suitable for common lighting and motor loads.

⚙️ Functionality

This module uses a learning button to pair with a wireless remote control. Once paired, the relay output can be configured into different operating modes depending on how the learning button is programmed.

Supported control modes include:

• Momentary mode – output is active only while the remote button is pressed.
• Toggle mode – press once to turn on, press again to turn off.
• Latching mode – maintains output state until changed by the remote.

An onboard indicator LED confirms successful pairing and operation.

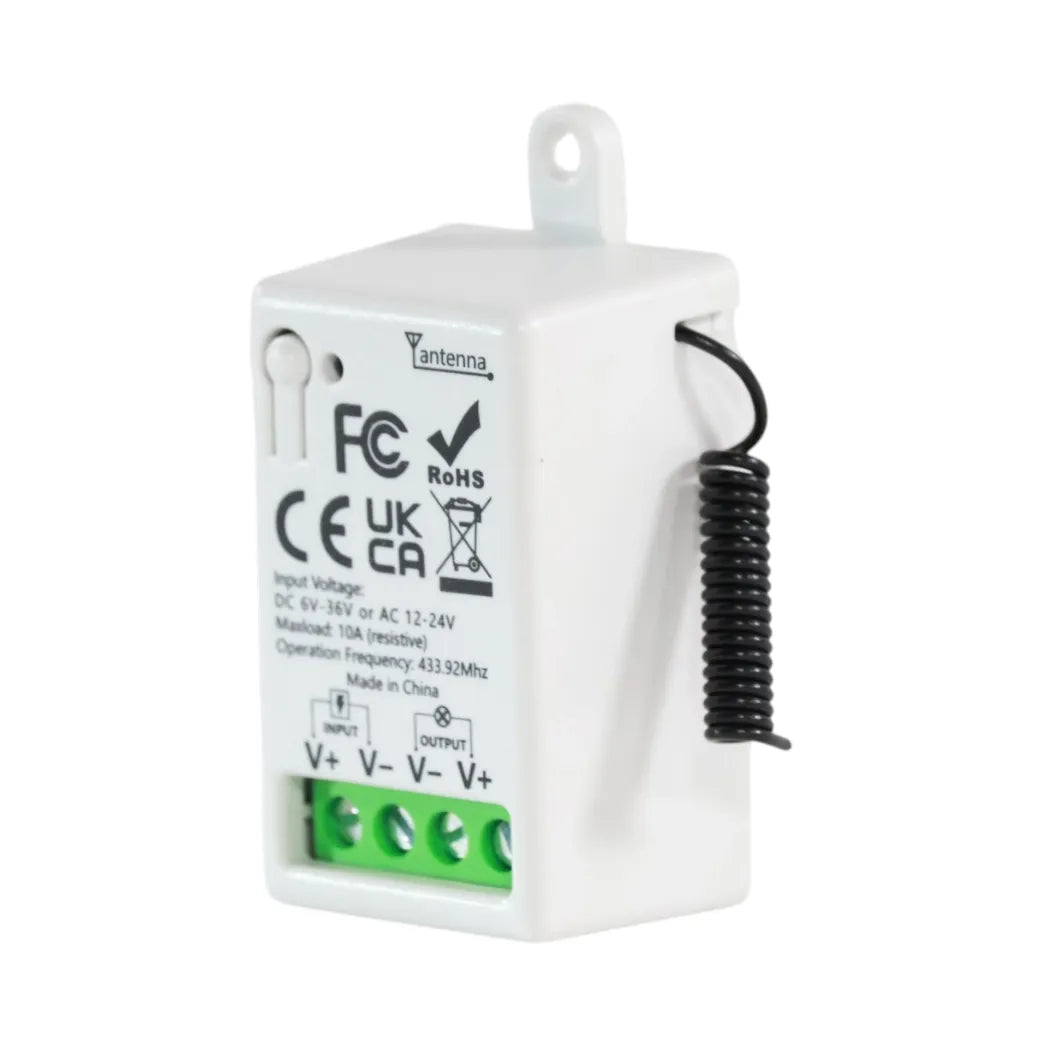

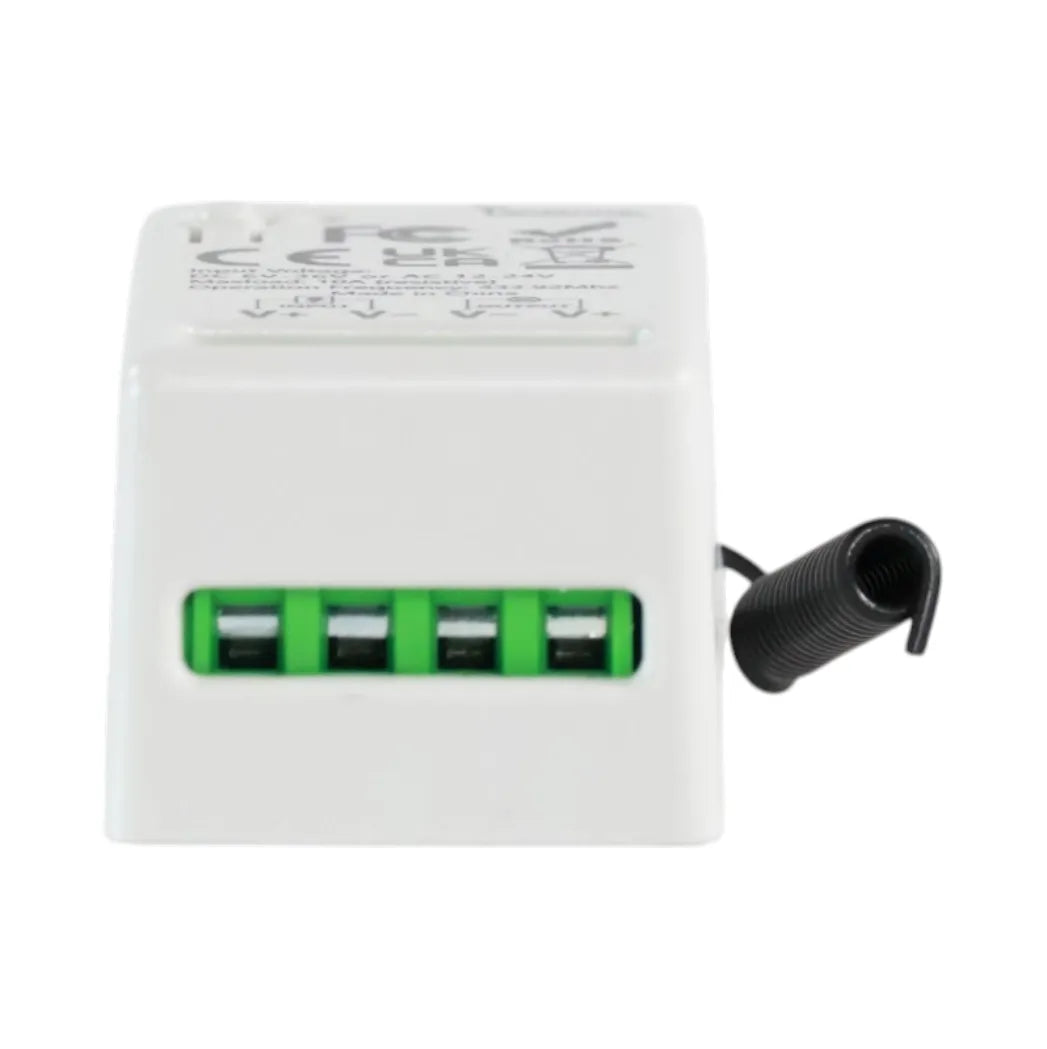

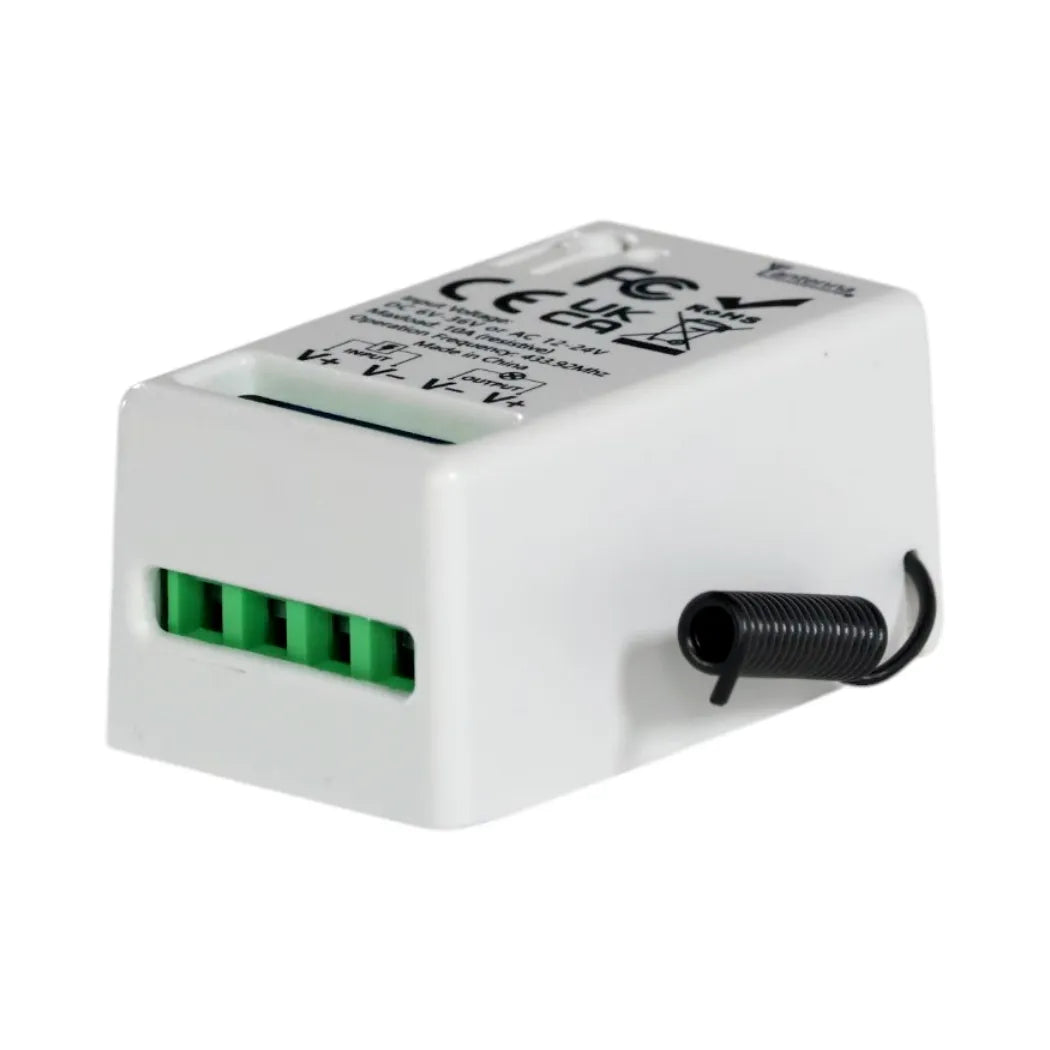

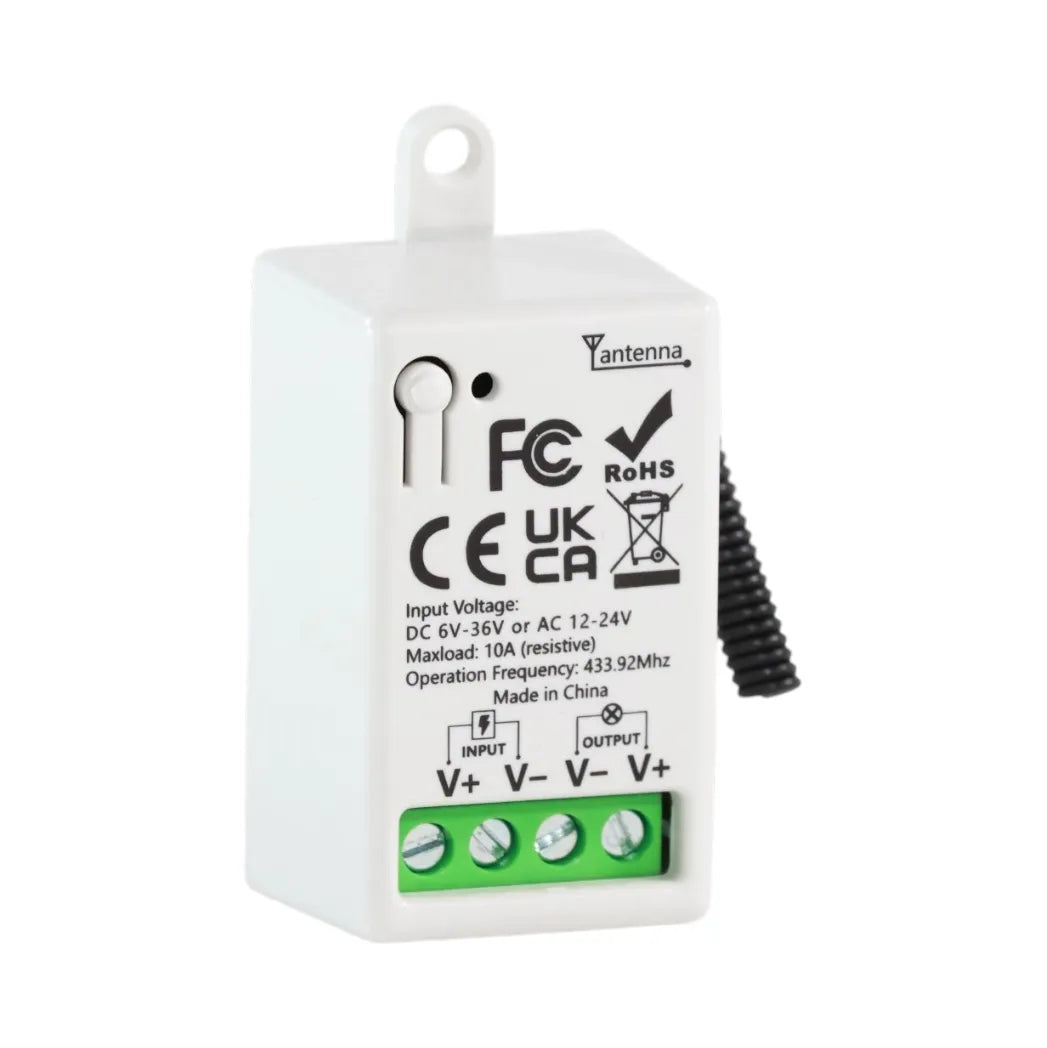

🔌 Wiring & Connections

• Input voltage terminals: V+ and V−
• Relay output terminals: COM / NO (normally open switching)
• Antenna: External RF antenna for improved signal reception

The relay output is electrically isolated, allowing safe control of compatible loads within the rated limits.

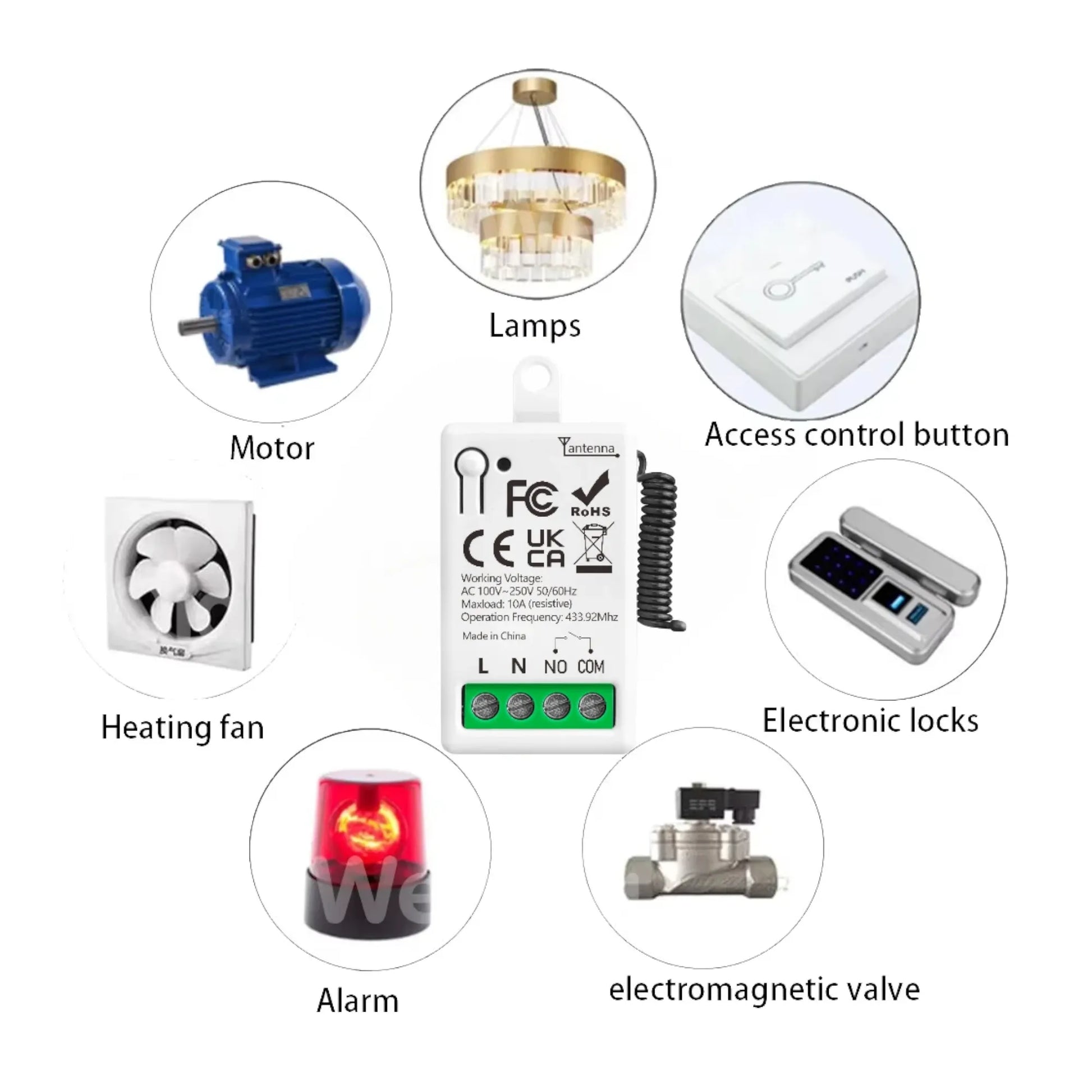

🔧 Applications

Widely used in industrial control and security fields, including:

• Lighting control
• Motors and fans
• Electric doors and windows
• Lifting equipment
• Wireless alarm systems
• Access control and automation
• Remote switching applications

Multiple receivers can be used in the same area without interference.

🧰 Installation Difficulty

🟡 3/5 (Moderate)
Requires basic electrical wiring knowledge. Installation should be carried out and verified by a suitably qualified person.

🔍 Features

• Wireless RF relay control
• Learning button with LED indicator
• Momentary / toggle / latching modes
• External antenna for stable reception
• Screw terminal wiring
• Compact enclosed housing

📊 Specifications

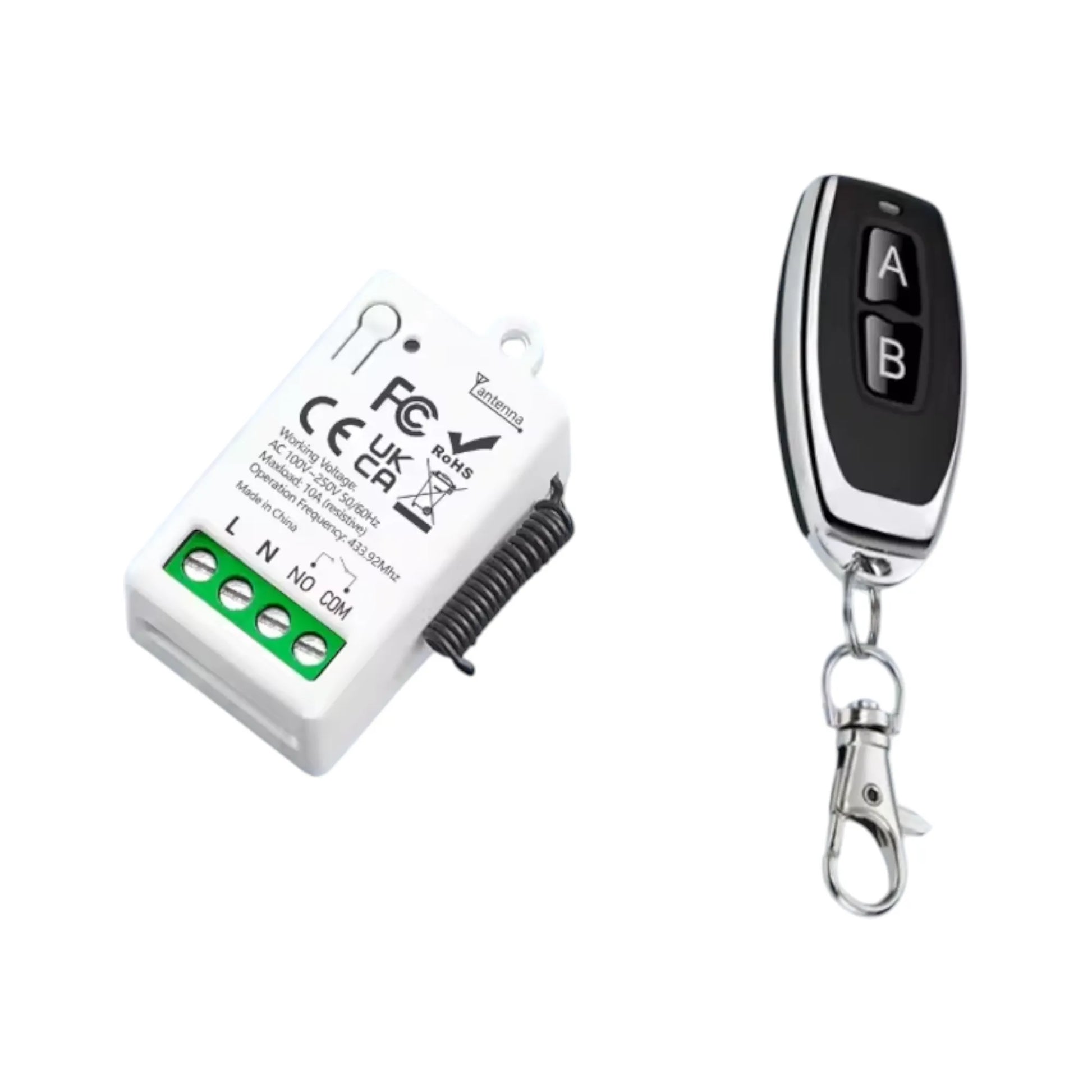

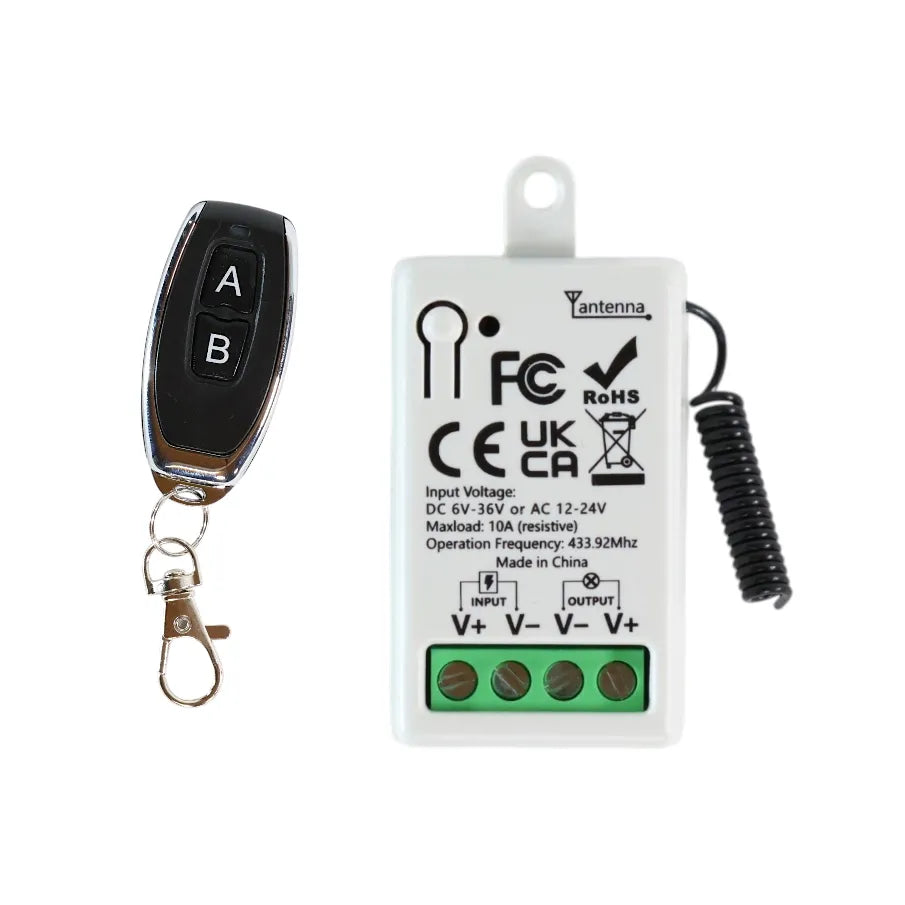

📦 What’s Included

• 1 × wireless relay receiver module
• 1 × wireless remote control

🙌 Why Choose This Product?

This relay module offers simple, flexible wireless control with a wide voltage range and dependable RF performance. It’s ideal for automation and control tasks where hardwired switches are impractical or inconvenient.
